Xi'an Brictec PCS Series automatic Pulverized coal firing system is an fully-automatic production system developed by our company, which integrates raw coal metering, crushing, drying,feeding and burning as well as monitoring functions according to the needs of automatic production process in brick and tile industry.The system is suitable for all continuous firing kilns which feeding pulverized coal and burning from the top.

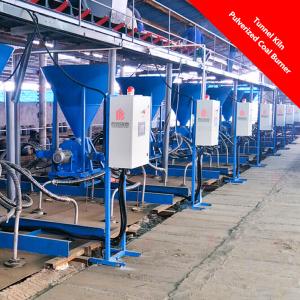

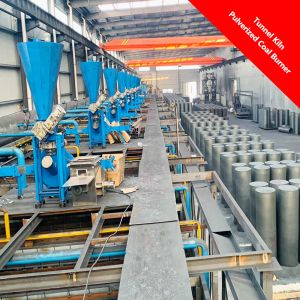

The whole system includes hardware and software. Hardware part: including raw coal storage silo,scale conveyor belt, coal crusher, screw conveyor, pulverized coal dryer, dust collector, chain feeder and pulverized coal burner and other equipment.Software part: including data acquisition unit, data analysis and processing unit, control unit and feedback adjustment unit.
Main paramenters of RT-PCSP ulverized coal firing system :
| Number of coal feeding points | Power of screw conveyor | Maximum flow at a single feeding point | Maximum thermal power at a single feeding point | Voltage | Auxiliary power supply |
| 12 | 0.37kW | 180m³/h | 115kw | 380V | 24V |
Operating ambient temperature: -10 to 50℃
Required Pulverized coal particle size:
| Required maximum Pulverized coal particle | Moisture content | Sulfur content | Hardgrove grind ability index | Calorific value of pulverized coal |
| ≤5 mm | ≤5% | ≤4% | ≥50 | ≥6000(cal) |
Asia: China, Kazakhstan, Uzbekislan, Taikistan, Turkmenislan, Vietnam, Malaysia, india, Bangladesh, Nepal, Pakistan, Middle East: lrag;
Europe: Russia, Kosovo;
Africa: South Africa, Morocco, Zimbabwe, Nigeria, Guinea;South America: Peru, Colombia, Mexico,Brazil, Venezuela,and other over 20 countries and regions.
The company also set up local offices and after-sales service centers in lrag, Kazakhslan and Bangladesh.Xi'an Brictec adheres to the corporate culture and spirt of "Customer Centric, Striving People-Oriented" and helps you make bricks easily!
