Equipment Introduction:

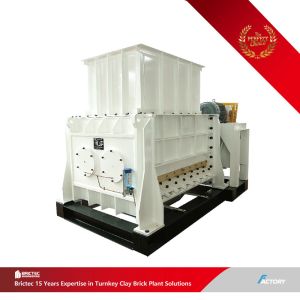

The Double Toothed Roll Crusher is a core equipment in clay brick production for raw material pre-processing. It utilizes two counter-rotating toothed rollers to shear and crush materials (e.g., clay, shale, coal gangue) into 3-10mm particles, ensuring optimal sizing for mixing and extrusion processes.
Technical Data:
| Model | Capacity | input port size | Gear Roller Specifications | Roller gap | Weight | Dimension | Power |
| CGP450/1000 | 35-40 m³/h | 1000*800 mm | 360 mm | 25-35 mm | 8.5 t | 3000*2100*1900 | 45
|
| CGP500/1400 | 40-65 m³/h | 1400*1000 mm | 400 mm | 25-35 mm | 12 t | 3800*2500*2300 | 90 |
| CGP600 | 55-80 m³/h | 1500*1000 mm | 540 mm | 25-35 mm | 15 t | 4300*2700*2500 | 90/3 |
Features:
1. Toothed Roll Design: Wear-resistant alloy teeth enable combined shearing and crushing.
2. Adjustable Gap: Hydraulic/mechanical gap adjustment (1-20mm) for precise output sizing.
3. Overload Protection: Hydraulic cushioning against foreign objects (e.g., metal scraps).
4. Modular Tooth Segments: Individual teeth replacement reduces maintenance costs.
Function:
Breaks bulk clay or hard materials (e.g., coal gangue) into uniform particles, preventing downstream issues like extruder jamming or brick cracking caused by uneven sizing.
Advantages:
1. Energy-Efficient: 30-40% lower power consumption vs jaw crushers.
2. Low Over-Crushing: Toothed rollers minimize fines, increasing clay utilization by 15%.
3. High Adaptability: Handles wet materials (≤25% moisture) or impure raw mixes.
Technical Terms:
Double Toothed Roll Crusher
Roll Gap Adjustment
Overload Protection
Wear-Resistant Alloy Teeth
